PVC Coated Heavy Galvanized Embankment Protection Metal Gabion Boxes
Brief Introduction of PVC-coated Metal Gabion Boxes for Embankment protection
Nova double-twisted PVC-coated gabion boxes are manufactured from metallic-coated steel wire (zinc-coated or Zn-5A1-MM-coated ) with an additional PVC coating extruded onto the metallic-coated steel wire.
The PVC layer provides extra protection to the metal gabion boxes for embankment protection.
Specification of PVC coated Metal Gabion Boxes for Embankment protection
| Typical sizes of gabion boxes | Dimensions (m) | Mesh size (cm) |
Length L | Width B | Height H |
2x0.5x0.5 2x1x0.5 4x1x0.5 1x1x1 2x1x1 4x1x1 2x1.5x1 6x2x0.5 | 2 2 4 1 2 4 2 6 | 0.5 1 1 1 1 1 1.5 2 | 0.5 0.5 0.5 1 1 1 1 0.5 | 8 x 10 8 x 10 8 x 10 8 x 10 8 x 10 8 x 10 8 x 10 8 x 10 |
Note: Other sizes available on request. |
Coating types: - heavily galvanized,
- heavily galvanized/ PVC coated,
- Galfan coated,
- Galfan coated/polymer coated.
|
Body wire: - diameter 2.7 mm plus 0.5mm thick PVC coating. |
Selvedge wire: - diameter 3.4 mm plus 0.5mm thick PVC coating. |
Lacing wire: - diameter 2.2 mm plus 0.5mm thick PVC coating. |
The PVC polymer coating is extruded over either zinc or galfan wire utilized in the manufacturing of gabions. The PVC coating meets the following requirements:
The coating must be at least 0.5 mm thick and must never be less than 0.4 mm
thick and be able to withstand the damaging effects of exposure to the elements
and saltwater immersion.
• Maximum specific gravity 1.5 g/m3, according to ISO 1183-1 : 2004.
• Minimum durometer Hardness (Shore D) 38, according to ISO 868 : 2003.
• Minimum tensile strength 17 MPa, according to ISO 527-2: 1993.
• Minimum elongation 200%, according to ISO 527-2 : 1993.
The PVC coating shall be in grey or dark green color.
Information needed when sending us an inquiry
In order to get a fast quotation, the following information is needed when sending us a quote:
- Wire diameter and surface treatment, including gsm of Zn coating and with or without PVC coating.
- Color of PVC
- Hole size and tolerance.
- Box size and diaphragm numbers.
- Quantity.
- Destination port of shipping.
Example: 8*10 type, 2.7/3.4/2.2mm wire with PVC coating, grey, 2*1*1, 1 diaphragm, 10000 pieces, ship to Jeddah port of Saudi.
Frequency Asked Questions regarding PVC Coated Heavy Galvanized Embankment Protection Metal Gabion Boxes
Q: Are you a factory or trading company?
A: We are factory of gabion and metal wire mesh products in Hebei province of China.
Can you provide samples? Is the samples free?
A: Sure, the sample is free, but usually the customer pays for the freight.
Q: Can I customize the metal gabion baskets?
A: Sure, as long as you provide detailed technical specifications specifying wire dia, hole size, and surface treatment or drawings.
Q: How is the lead time?

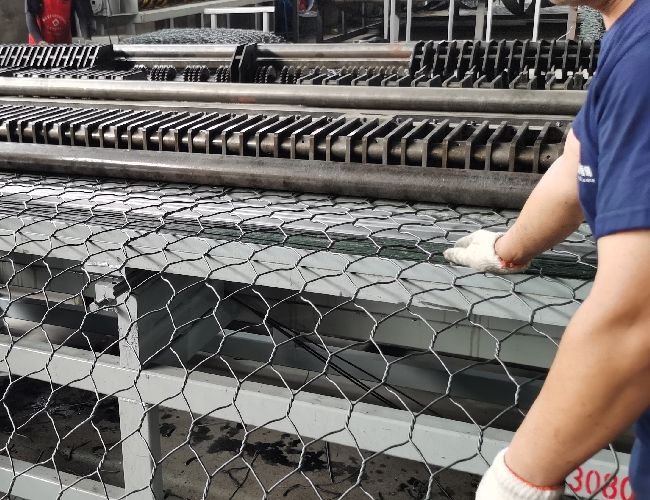

A: Our capability is 4000 square meters per day per machine, which means it needs 4-5days to produce one 40 ft container.
Q: What payment method can we use when ordering?
A; We accept wire payments to our China or Hong Kong official bank accounts, or L/C (with 30% deposit), Western Union, Paypal, credit card, etc.
