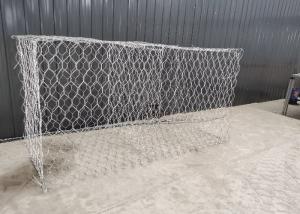

80x100mm Riverbank Stability Woven Metal Gabion Box
Nova metal gabion baskets are engineered from double twisted hexagonal woven iron wire mesh with different hole sizes with or without polymer coating. Typical hole sizes include 6*8mm, 80*100mm, and 100*120mm.
Nova metal gabion baskets for river bank stability products make use of the most up-to-date coating and manufacturing techniques to provide a highly practical and long-lasting product that Engineers can confidently use in their designs.
Advantages of Nova Metal Gabion Box for Riverbank Stability and other Channel, River, and Stream Works
•Strong, flexible, and free-draining.
•Environmentally friendly, pleasing to the eye, and able to fit in with the surroundings.
•Can be used on soft ground with little foundation preparation needed.
•Once erected, protection is given immediately.
• Possibility of using locally accessible, smaller-sized stone with the metal gabion baskets than would typically be possible;
• Low cost of labor.
Specification of Nova metal gabion baskets used in Channel, River, and Stream Works
1. Nova double-twisted mesh is manufactured from zinc-coated steel wire conforming to Specification A641/A641M, Class 3 coating, soft temper. (see table below).
2. Nova double-twisted mesh is manufactured from Zn-5A1-MM-coated or Zn-10A1-MM-coated steel wire conforming to Specification A856/A856M, Class 3 coating, soft temper.
| Minimum Weight of Zn per Unit Area of Zn coated Wire Surface |
| 2 | 214 gsm (gram per square meter) |
| 2.2 | 229 gsm |
| 2.3 | 229 gsm |
| 3.05 | 259 gsm |
| 3.4 | 259 gsm |
| 3.8 | 275 gsm |
Packing and shipping of Nova metal gabion baskets

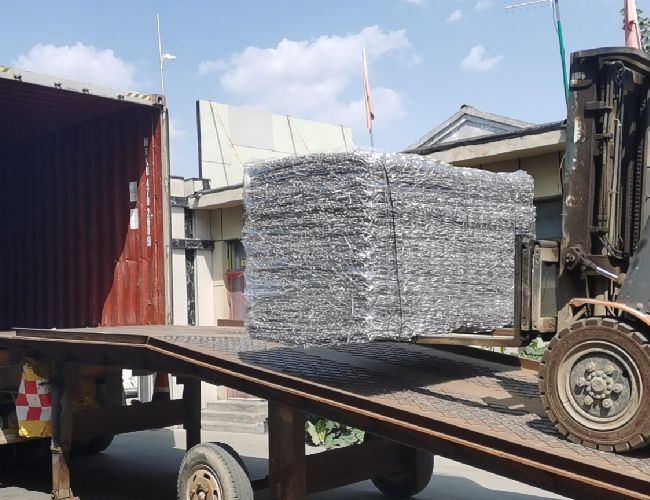

Nova metal gabion baskets are delivered flat-packed in bundles (20-50 pieces per bundle), assembled, and filled with stones at the project site.
We provide worldwide shipping service no matter whether you are in which country of the world by sea shipping with 20ft or 40ft containers.
Ordering Information of Nova metal gabion baskets:
Orders for material specification shall include the following information:
1. Quantity (number of units) as shown on the plan;
2. Product type (gabions or revet mattresses);
3. Size (length by width by height);
4. Style of coating;
5. ASTM designation and year of issue,
6. Any special requirements.
A typical ordering description is as follows:
100 sets of gabion baskets, 2 *1*1 m or (6 by 3 by 3 ft),
100 revet mattresses4*2*0.23 m or (12 x 6 x 0.75 ft) and 100 lids 4 by 2 m or (12 by 6 ft) as shown on plans;
Style 1, 2, 3, or 4 with required fasteners or lacing wire and stiffeners conforming to ASTM A975.
We can send standard ASTM A975 upon your request.
Please contact us now for the most updated quote. +8615350592434, admin@nova-wiremesh.com
