Welded Mesh Gabions for Landscape Construction and Retaining Walls
Welded gabion, is more and more popular in the decorative and functional applications. It can be used for protect the slope as retaining wall. It can also be made into the planters, fireplaces, decorative walls and various landscape constructions.
Welded gabion is made of corrosive resistant materials, including galvanized wire, Galfan wire, PVC coated wire, which can remain the good appearance and performance even being exposed onto the sunlight, rain and other harsh environments, different sizes and shaped can be customized according to your requirement.
We have various of connection types for your choice, such as lacing wires, C rings, spiral wires and U clips, they all can supply high strength and durability for your project, just choose which one you prefer.
| Nominal gabions basket size (m) | No. of diaphragms
for reinforcing(no.) | Capacity per basket
(m3) |
| 1.0x1.0x0.5 | | 0.50 |
| 1.0x1.0x1.0 | | 1.00 |
| 1.5x1.0x0.5 | | 0.75 |
| 1.5x1.0x1.0 | | 1.50 |
| 2.0x1.0x0.5 | 1 | 1.00 |
| 2.0x1.0x1.0 | 1 | 2.00 |
| 3.0x1.0x0.5 | 2 | 1.50 |
| 3.0x1.0x1.0 | 2 | 3.00 |
| 4.0x1.0x0.5 | 3 | 2.00 |
| 4.0x1.0x1.0 | 3 | 4.00 |
Advantages of Gabions:
Flexibility
One of the most important advantages of double twisted mesh gabions & es is their flexibility both for the individual unit and the overall gabion or structure. The Double Twisted Hexagonal Mesh construction of the units permits it to tolerate differential settlement without failure. This property is especially important when a structure is on unstable soil conditions or in areas where scour from wave action or currents can undermine the toe of the structure and cause structural settlement.
Durability
Gabions & es built from high strength double twisted hexagonal mesh filled with natural hard durable stone and connected together to create a monolithic mass structure capable of undergoing structural movement without any loss of structural integrity creating a highly durable structure.
Strength
Double Twisted Hexagonal Mesh Gabions & es possess the strength and flexibility to withstand forces generated by water and earth masses. The most important and relevant strength characteristics pertaining to gabion and design standards are the mesh punch strength, the mesh tensile strength, the pull apart resistance strength of the mesh, and the corrosion resistance of the mesh. The strength values of the double twisted mesh are located within the individual product specifications for each product and are represented in ASTM A975-97.
Permeability
Gabions & es create structures that are naturally free draining. Hydrostatic heads do not develop behind gabion and structures. Drainage is accomplished by gravity and by evaporation as the porous structure permits an active air circulation through it. Moreover, as soil is deposited and plant growth invades the structure, transpiration further assist in removing moisture from the soil being protected.
Ecology
Gabions & es offer an environmentally sensitive solution to soil retention slope stabilization. Gabion and structures utilize natural stone for their stability and strength. Constructed of natural stone fill the gabions are naturally porous allowing interaction between the land and the water table. Soil will generally be deposited in the small voids of the stone fill material during drainage and draw down and will promote vegetated growth inundating the structure. Over time in some applications the structure can become so inundated with vegetation as to no longer be visible. Vegetation, plant and tree growth can be implemented at the time of construction utilizing several methods to ensure vegetation occurs immediately.
Reliability
The overall strength characteristics offered by the double twisted hexagonal mesh gabion and listed above and the long successful history of the material usage world wide ensures that the double twisted mesh gabions and es will perform as designed.
Low Construction Cost
Gabions & installations are very cost effective. Gabions & es are easy to construct requiring limited equipment, unskilled labor, minimal foundation preparation, no drainage provisions, and low cost stone fill generally provided by a local stone or rock supplier. Gabion & structures require very little if any maintenance and if designed and built properly can be a permanent structure.
Aesthetics
Gabions & es constructed with care can create visually pleasing structures. Unlike other types of materials such a modular block walls the gabion stones do not discolor due to drainage. In fact the longer a gabion or structure is in place and becomes inundated with vegetation the more aesthetic it becomes.
Applications:
you’ll find them used extensively where a neat appearance and clean outline are important, such as public areas, housing developments, landscaping and gardens.

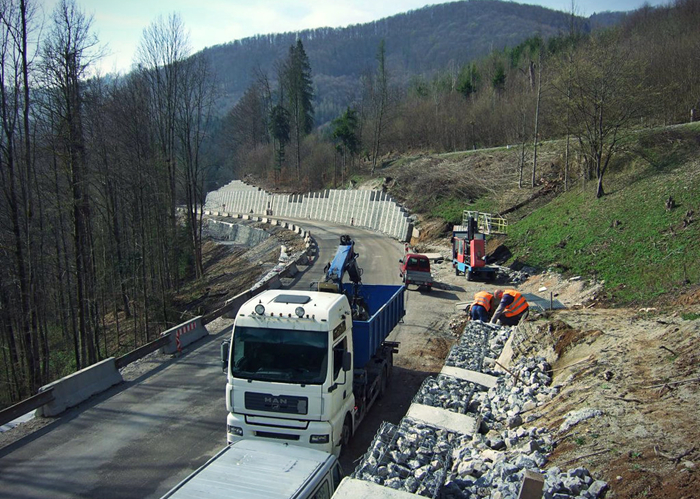

Retaining wall structures
River and canal training
Erosion and scour protection; roadway protection; bridge protection
Hydraulic structures, dams and culverts
Coastal embankment works
Rockfall and soil erosion protection
Architectural cladding for walls and buildings
Freestanding walls, noise and environmental barriers
Architectural Gabion Applications
When requesting a quote, please specify:
size of units (LxWxH)
type of mesh size (50*50,100*100mm)
type of coating (galvanized wire, galfan wire)
Wire diameter(4mm,5mm)
