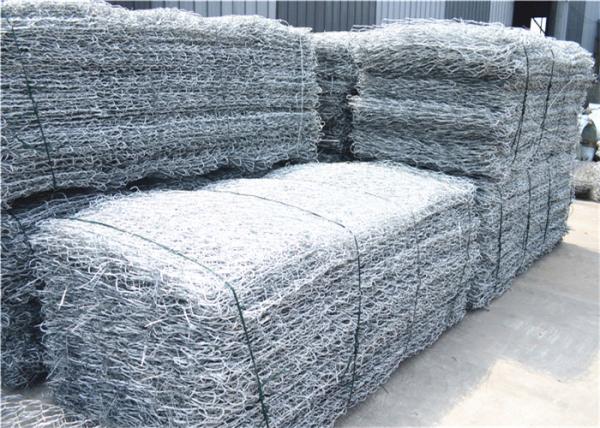

Double twist woven gabion wire mesh roll / gabion road protection wire mesh
Product Description:
Gabion mesh roll made of double twisted hexagonal woven mesh, It has excellent tensile strength, corrosion resistance and long service life. We can provide different opening diameter gabion mesh according to your requirements.
Gabion mesh can be used for rockfall mesh, Mesh for road and be made into gabion mattress, gabion basket for garden decorations, river bank, etc.
Material:
Heavy galvanized wire, zinc according to BS 443, min zinc coating 255 gr/m2 and tensile strength < 500 Ν/mm2
Heavy galvanized wire, with 5% aluminium (GALFAN or Zn95Al5), zinc according to EN 10244-2, min zinc coating 255 gr/m2 and tensile strength < 500 Ν/mm2
Plastic coated wire (PVC), min PVC coating 0.5-1 mm, inside heavy galvanized wire, zinc according to BS 443, min zinc coating 255 gr/m2 and tensile strength < 500 Ν/mm2
Benefits and features -
Reduce run off.
Consistent quality and performance.
Retain more water than hydro mulch covers.
Reduce sediment concentration and soil loss.
Excellent performance in strength and durable under high velocities.
Vegetation performs better with blankets than with hydro mulches.
Ease of installation.
Applications -
Stabilization and reinforcement of slopes with deviation
Construction of support walls with flat or tiered surface
Preventive stabilization of soil
Preventive net for rock-fall confinement
Strengthening of water barriers, canals and docks
Re-direction of water flow of rivers and canals
Coating of river banks, canal and stream banks
Reinforcement of bridge base and extrusion of hydropower stations
Retaining of mounds
| HEXAGONAL WIRE MESH IN ROLLS (ROCK-FALL NETTING) |
WIRE DIAMETER
(mm) | HOLE SIZE
(mm) | LENGTH OF ROLL
(m) | WIDTH OF ROLL
(m) | WEIGHT
(kg/m) |
| 3.00 | 80 x 100 | 20 | 0.50 – 1.00 – 1.50 – 2.00
2.50 – 3.00 - 3.50 – 4.00 | 1,75 |
| 2.7 | 100 x 120 | 20 | 0.50 – 1.00 – 1.50 – 2.00
2.50 – 3.00 - 3.50 – 4.00 | 1.50 |
Other specification and surface treatment are also available.
